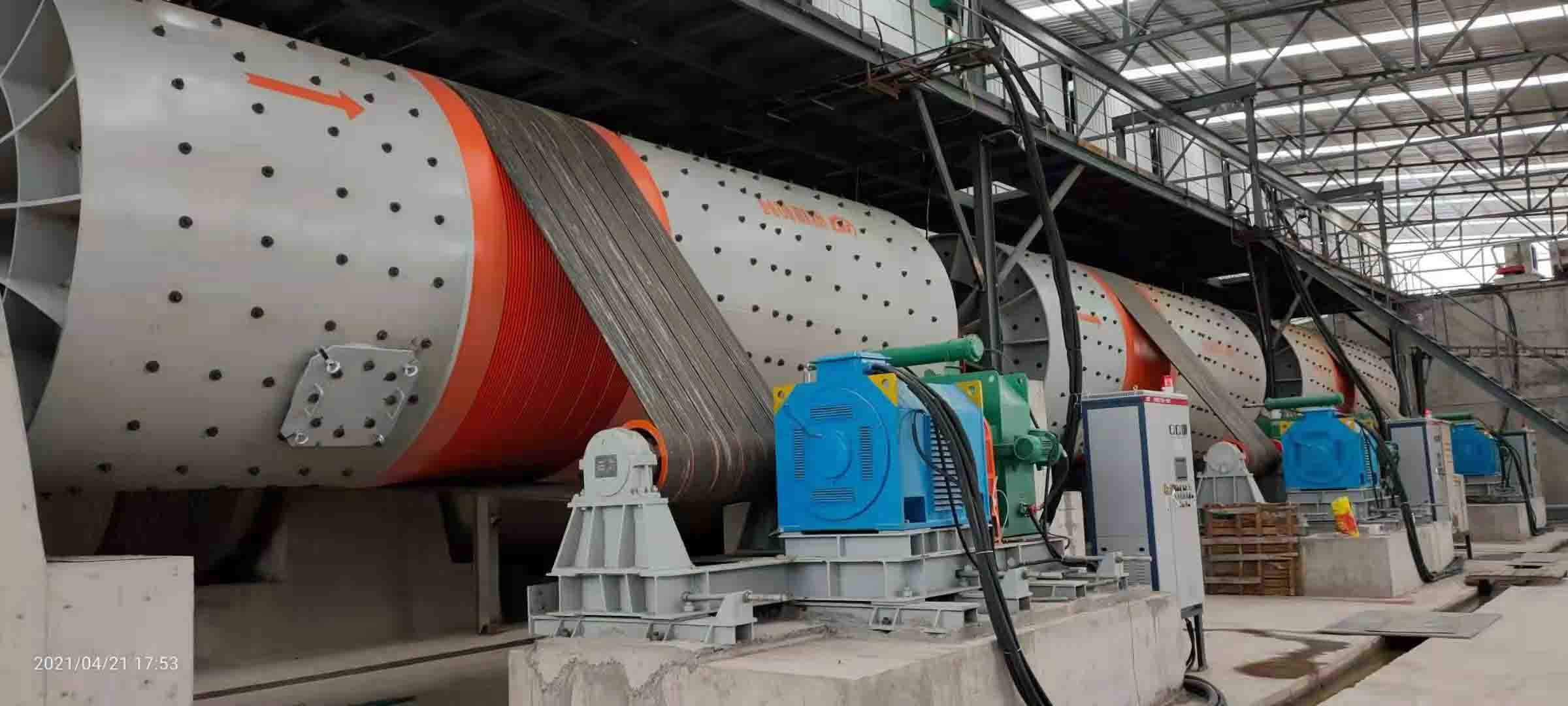

Inverter technology helps traditional ball mills develop automation processes

As the preferred equipment for crushing large construction waste and various mining materials, ball mills are widely used in mineral processing, building materials, chemical industry and other industries. Ball mills can be divided into dry and wet types according to the different grinding methods, and various ores and other grindable materials can be dry or wet ground. According to different discharge methods, they can be divided into grid type and overflow type.

As a low-speed heavy-load equipment, the ball mill has a large load capacity and a large starting torque. Traditional ball mills usually need to be equipped with hydraulic couplings to improve the starting and speed regulation functions of the transmission system. For example, ceramic industrial ball mills usually use additional starting motor impact starting or soft starting devices to start, which has a great impact on the power grid, and the torque required for operation after the start is completed is reduced and the energy consumption is large. Therefore, traditional ball mills have many limitations.

Design advantages of energy-saving control cabinet for ball mills

1. The frequency conversion cabinet designed specifically for ball mills has an integrated design, a compact and reasonable structure, and is easy to install.

2. The voltage and current meters are directly monitored and displayed, and built-in DC reactors and circuit breakers are standard.

3. LCD display is standard, and the operation interface is simple and intuitive.

4. Rich parameter functions, 6 parameters and 8 speed sections, users can set them arbitrarily to meet users' various production process requirements.

5. High-efficiency power-saving design is adopted.

6. Main and auxiliary machine control, convenient and fast switching.

7. Unique dust-proof design can effectively prevent dust from entering the machine, and it is convenient to maintain the radiator and replace the fan.

8. Relatively complete protection functions, with input phase loss protection, output phase loss protection, output phase short circuit protection, output to ground protection and other functions.

9. Automatic voltage stabilization function, effectively prevent motor stator overvoltage and reduce motor heating.

10. Automatic current limiting function to prevent frequent overcurrent fault tripping.

11. Adopt optimized SVPWM vector control technology, with higher control accuracy and more stable.

12. It has the breakpoint memory function of the current operating parameters and intelligently tracks the curve set by the user.
